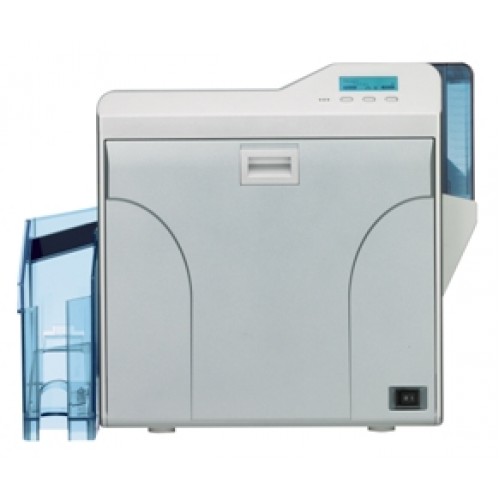

DNP CX-D80 Re Transfer Card Printer
The DNP CX-D80 Re transfer Card Printer is the culmination of the technological development and is the most innovative card printer available for all types of card-issuing applications.
Printing on Embedded chip cards, THIS is the printer for you. Superior print quality on UNEVEN cards. No cards rejected, save money & time.
At the cutting edge of re transfer technology, it provides the finest and the most reliable results with a compact body.
High Quality, Reliability, and Convenience DNP CX-D80 has a thermal re transfer-printing engine. As the latest in the CX series, the printer delivers the maximum impact and ease-of-use with glossy photo, real edge-to-edge printing, remains free of head-damage and offers real versatility all with a dramatically smaller body design.
Available in single & Dual sided printing
View the CX-D80 Brochure here
| CX-D80 Spec | |
| Printing Method | Dye sublimation/Resin Thermal Retransfer |
| Printing side | Single or Double |
| Resolution | 300 dpi |
| Printable area | Full-Bleed (edge-to-edge) |
| Print speed | 40 sec : YMCK on single side |
| Interface | USB2.0(Ver2.0) Full-Speed(12Mbps) / Hi-Speed(480Mbps) 10BASE-T/100 BASE-TX Ethernet |
| Card Type | PVC, Composite PVC, PET-G, ABS, etc* |
| Input & Output Capacity | 100 cards each (0.76mm thickness) |
| Dimension | W343 x D322 x H335 (mm) |
| Weight | 13.0kg (Single side with no optional unit) |
| Power Supply | Maximum 3A (100 to 120V), Maximum 1.5A (220 to 240V) |
| Operating Environment | 15℃-30℃, 35%-70% non condensing humidity |
| Ink ribbon | YMCK, YMCKK, YMCKUv, YMCKPo |
| Options | Magnetic stripe encoding, Contact chip encoding, Contactless IC encoding, Bend Remedy Unit, Laminatioin unit(CL-600) |
| Safety Standard/Regulation | FCC, CE, UL, VCCI-B, FCC Class B, EN Class B, RoHS, CCC |
